Add interface L2

The current schema support L3 Interfaces with potential IP addresses but it doesn't currently support other type of interfaces like L2.

Since we already have a Generic DcimInterface, we can create a new Interface L2 node that will inherit from DcimInterface.

Create a new InterfaceL2 node​

Create a new file workshop_b2/lab3/schemas/interface_l2.yml and with the content displayed below

---
version: "1.0"
nodes:
  - name: InterfaceL2
    namespace: Dcim
    label: Interface L2
    icon: mdi:ethernet
    menu_placement: DcimInterface
    display_labels:
      - name__value
    inherit_from:
      - DcimInterface
      - DcimEndpoint
    attributes:
      - name: status
        kind: Dropdown
        optional: true
        choices:
          - name: active
            label: Active
            description: Fully operational and currently in service.
            color: "#7fbf7f"
          - name: provisioning
            label: Provisioning
            description: In the process of being set up and configured.
            color: "#ffff7f"
          - name: maintenance
            label: Maintenance
            description: Undergoing routine maintenance or repairs.
            color: "#ffd27f"
      - name: l2_mode
        label: Layer2 Mode
        kind: Text
        enum:
          - Access
          - Trunk
          - Tunnel
info

There's a file in workshop_b2/lab3/schemas/interface_l2.yml.bak if you want to cheat on this step. Simply rename it to interface_l2.yml

Load the updated schema​

infrahubctl schema load workshop_b2/lab3/schemas --branch schema01

Load some additional data​

Create new L2 interfaces with the following commands

infrahubctl object load workshop_b2/lab3/data/interface_l2.yml --branch schema01

Explore the new L2 interfaces from the frontend​

In the frontend, navigate to the interfaces tab on the device den1-router1.

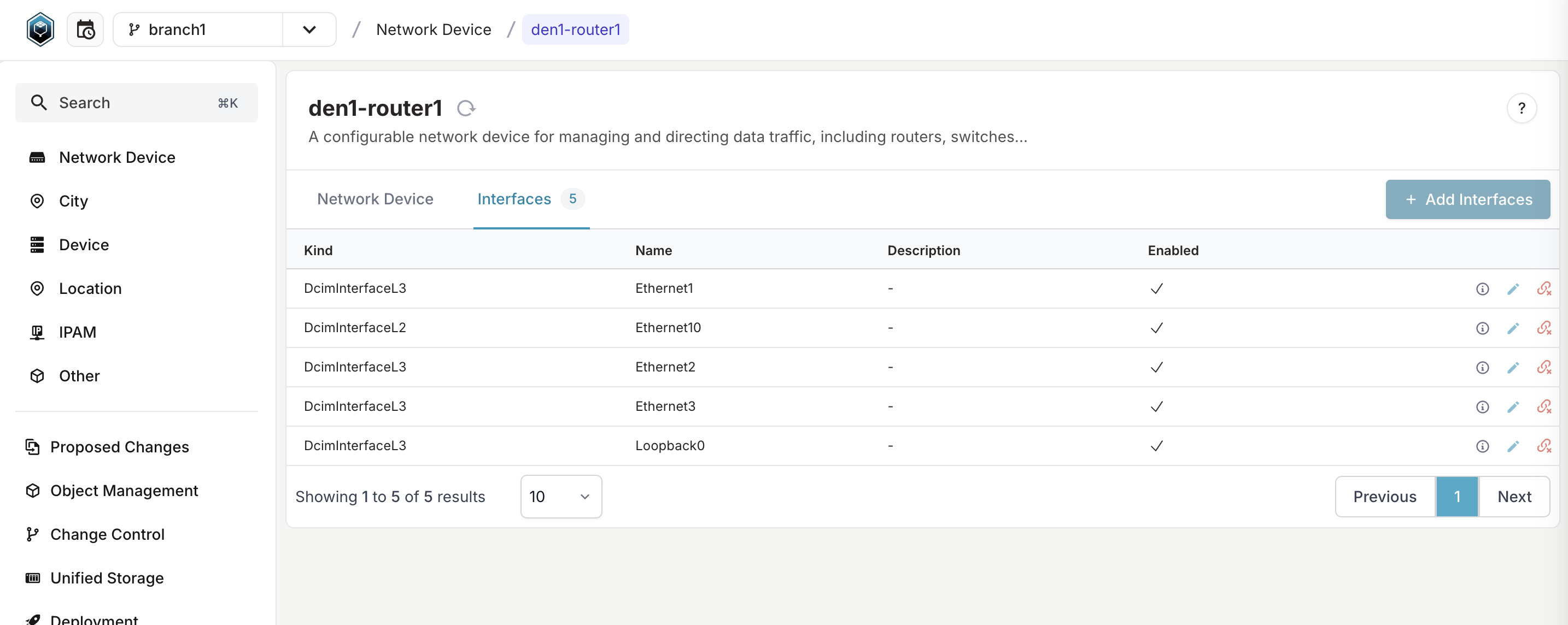

As shown in the screenshot below we can see that both InterfaceL3 and InterfaceL2 are displayed together.

This is possible because Interface L2 and interface L3 are both inheriting from the same DcimInterface interfaces

Explore the new interfaces in GraphQL​

In the GraphQL Sandbox, execute the following command

query {
  DcimDevice(name__value: "den1-router1" ) {
     edges {
      node{
        interfaces {
          edges {
            node {
              name {
                value
              }
              ...on DcimInterfaceL2 {
                l2_mode {
                  value
                }
              }
              ...on DcimInterfaceL3 {
                ip_addresses {
                  edges {
                    node {
                      address {
                        value
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}

The command above is using Fragments in GraphQL to retrieve all interfaces in a single list but also access attributes specific to InterfaceL2 or InterfaceL3.
